Top Panel Assembly

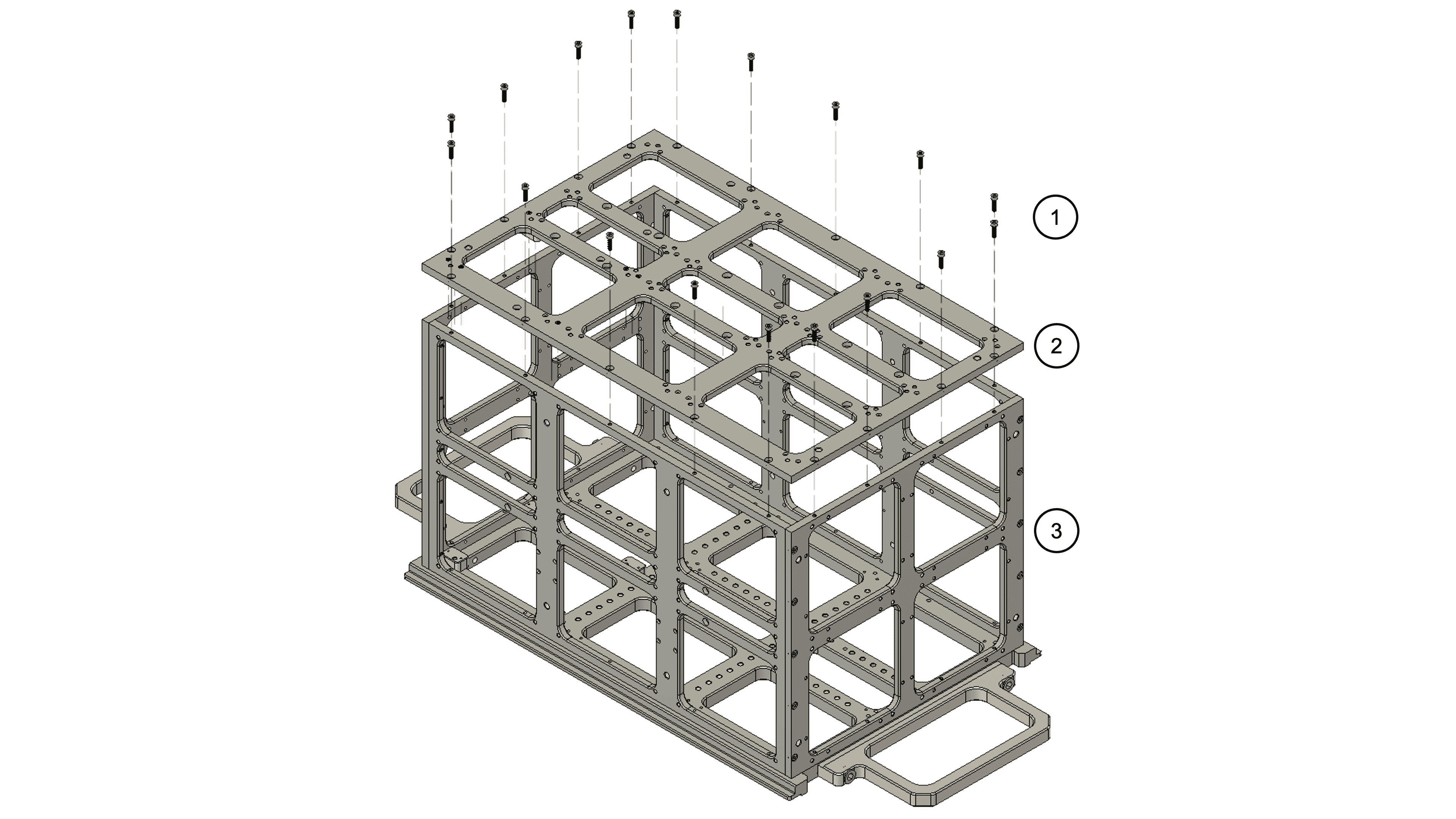

Image title

# Part number Qty Assembly Torque [N.m]
1 F-CH-M-2.5-10-A4 18 0.55
2 S-PANEL-TO-10 1 -
3 ASSEMBLY 1 -

Step description

  • Attach the top panel (#2) to the assembly (#3) using the M2.5 x 10 mm fasteners provided (#1).
