Second Side Panel Assembly¶
| # | Part number | Qty | Assembly Torque [N.m] |
|---|---|---|---|
| 1 | F-CH-M-2.5-12-A4 | 5 | 0.55 |
| 2 | ASSEMBLY | 1 | - |
| 3 | S-PANEL-RI-10 | 1 | - |
Tip
This step requires two people.
Warning
Do not apply the assembly torque to until the side, front and back panels are attached to the baseplate creating an open box. It is an important step which accounts for the stack-up of tolerances and helps with alignment of parts.
Step description¶

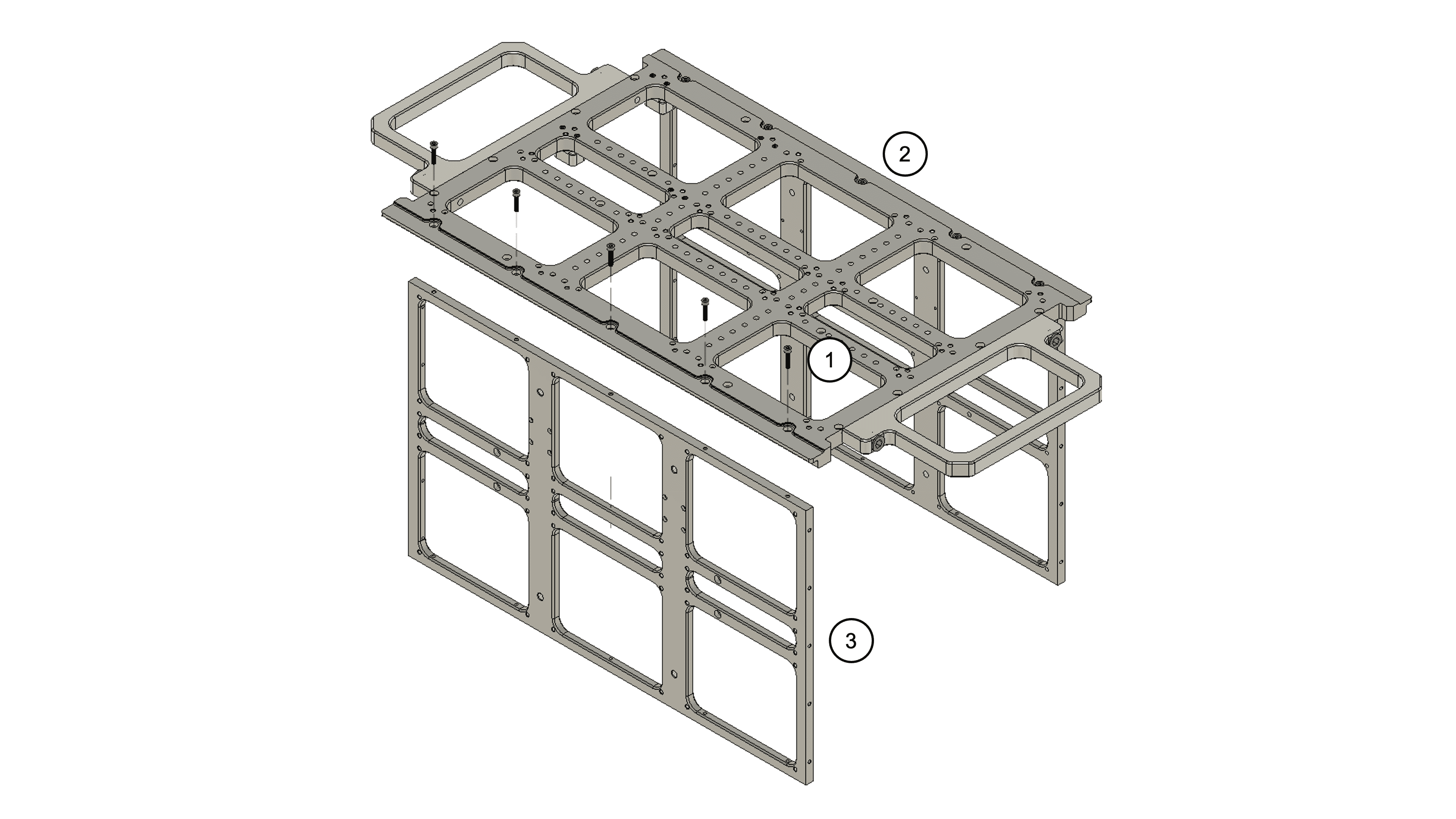

- Attach the second side panel (
#3) to the baseplate (#2) using the M2.5 x 12 mm fasteners provided (#1).
