GSE Handle Assembly¶
| # | Part number | Qty | Assembly Torque [N.m] |
|---|---|---|---|
| 1 | F-CH-M-6-25-A2 | 2 | 0.6 |
| 2 | G-HANDLE-V1-10 | 1 | - |
| 3 | S-PANEL-BO-10 | 1 | - |
| 4 | F-CH-M-6-25-A2 | 2 | 0.6 |
| 5 | G-HANDLE-V1-10 | 1 | - |
Step description¶

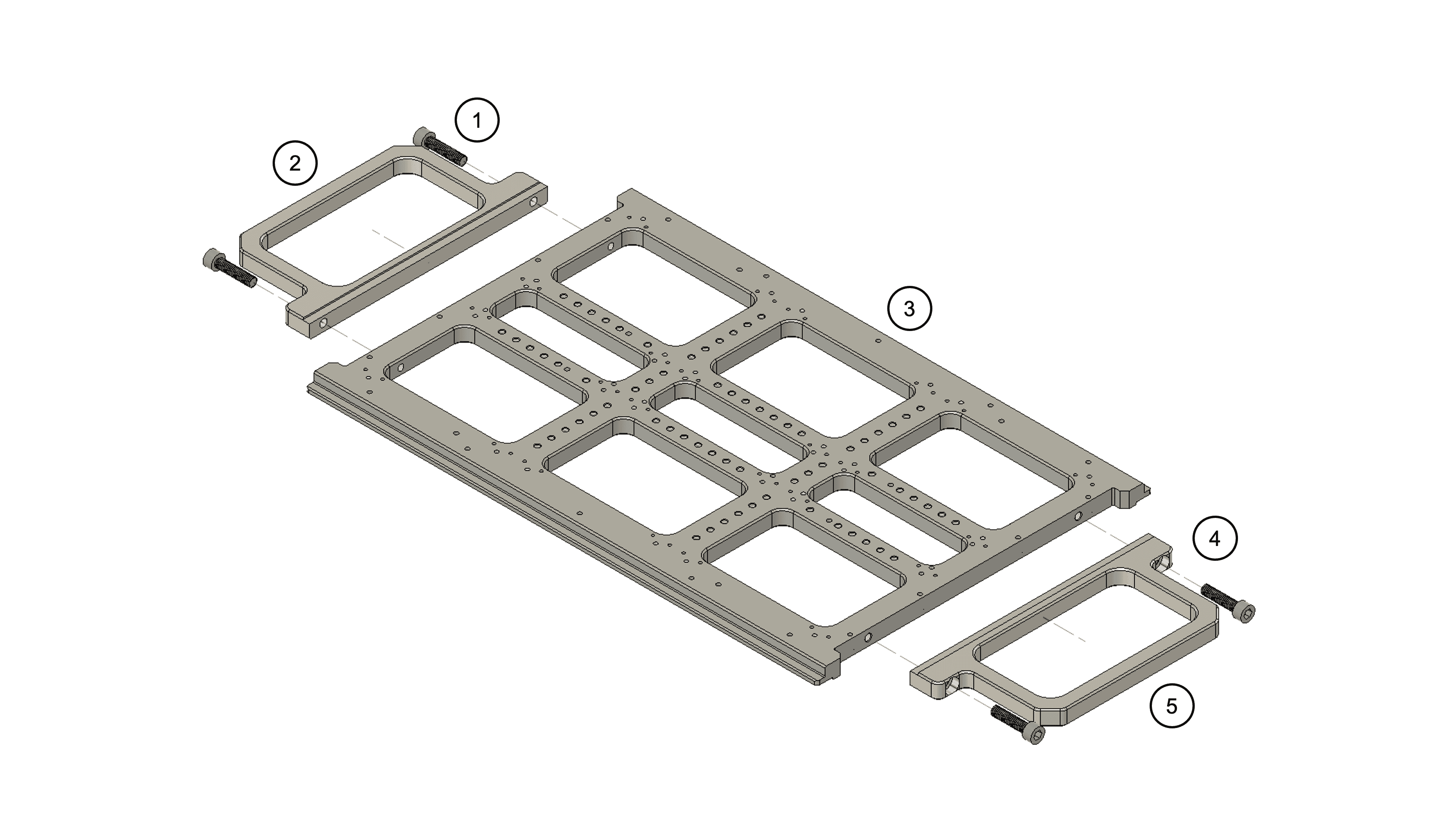

- Attach the GSE handles (
#2) to the baseplate (#3) using the M6 fasteners provided (#1).
