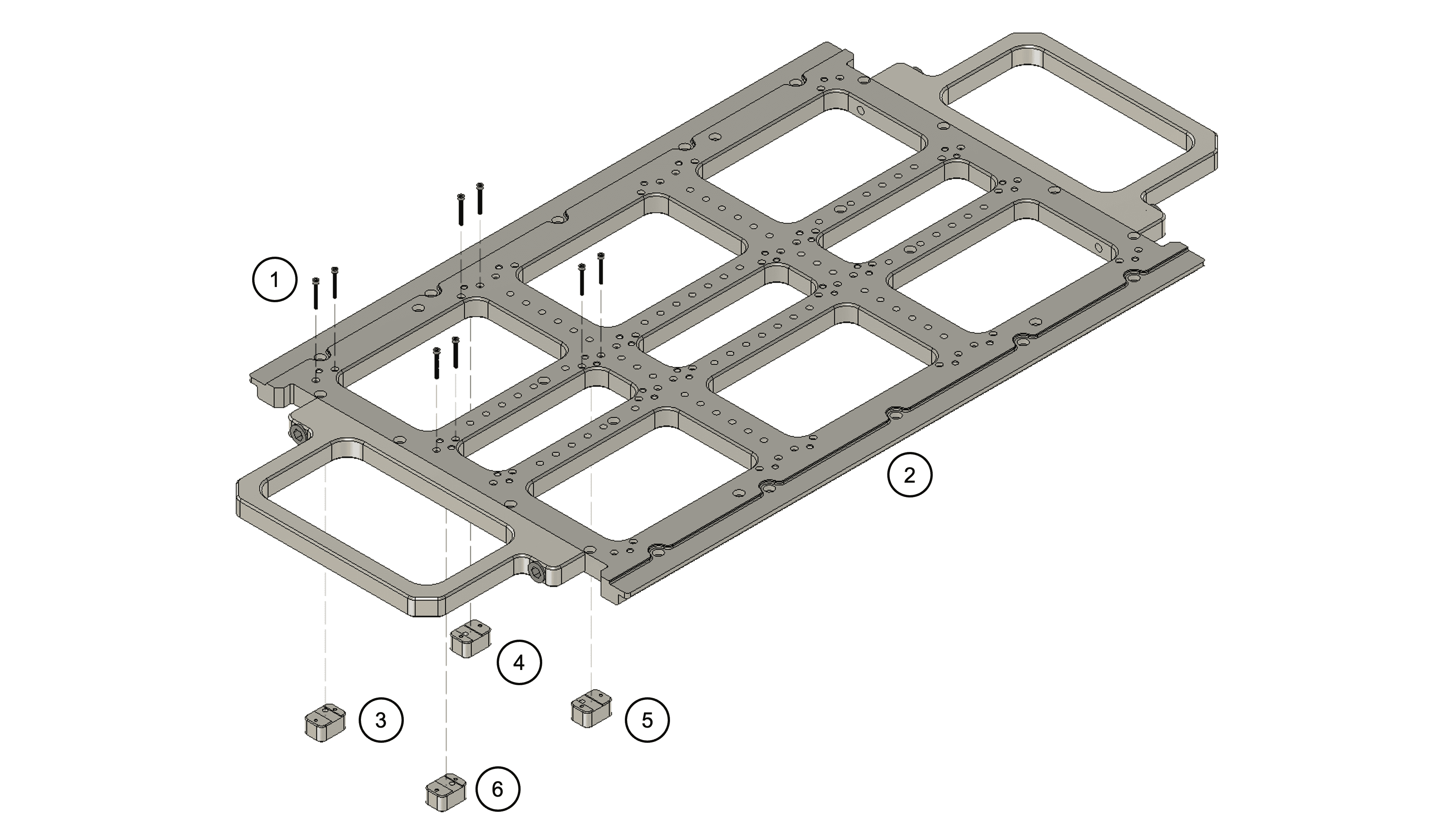

Baseplate PC/104 Adapter Assembly¶
| # | Part number | Qty | Assembly Torque [N.m] |
|---|---|---|---|
| 1 | F-CH-M-1.6-14-A4 | 8 | 0.16 |
| 2 | ASSEMBLY | 1 | - |
| 3 | S-BLOCK-0A-10 | 1 | - |
| 4 | S-BLOCK-0B-10 | 1 | - |
| 5 | S-BLOCK-0C-10 | 1 | - |
| 6 | S-BLOCK-0D-10 | 1 | - |
Step description¶
Warning
Do not apply the assembly torque to the blocks until the first stack component (PC.104 module) is loosely mounted.
-
Flip the baseplate (
#2) over. -
Attach the bottom stack blocks (
#3,#4,#5) to the baseplate (#2) using the M1.6 x 14 mm fasteners provided (#1). -
The use of the PC/104 adapters is optional. The location and number of stack adapter sets used is up to the customer's configuration.
