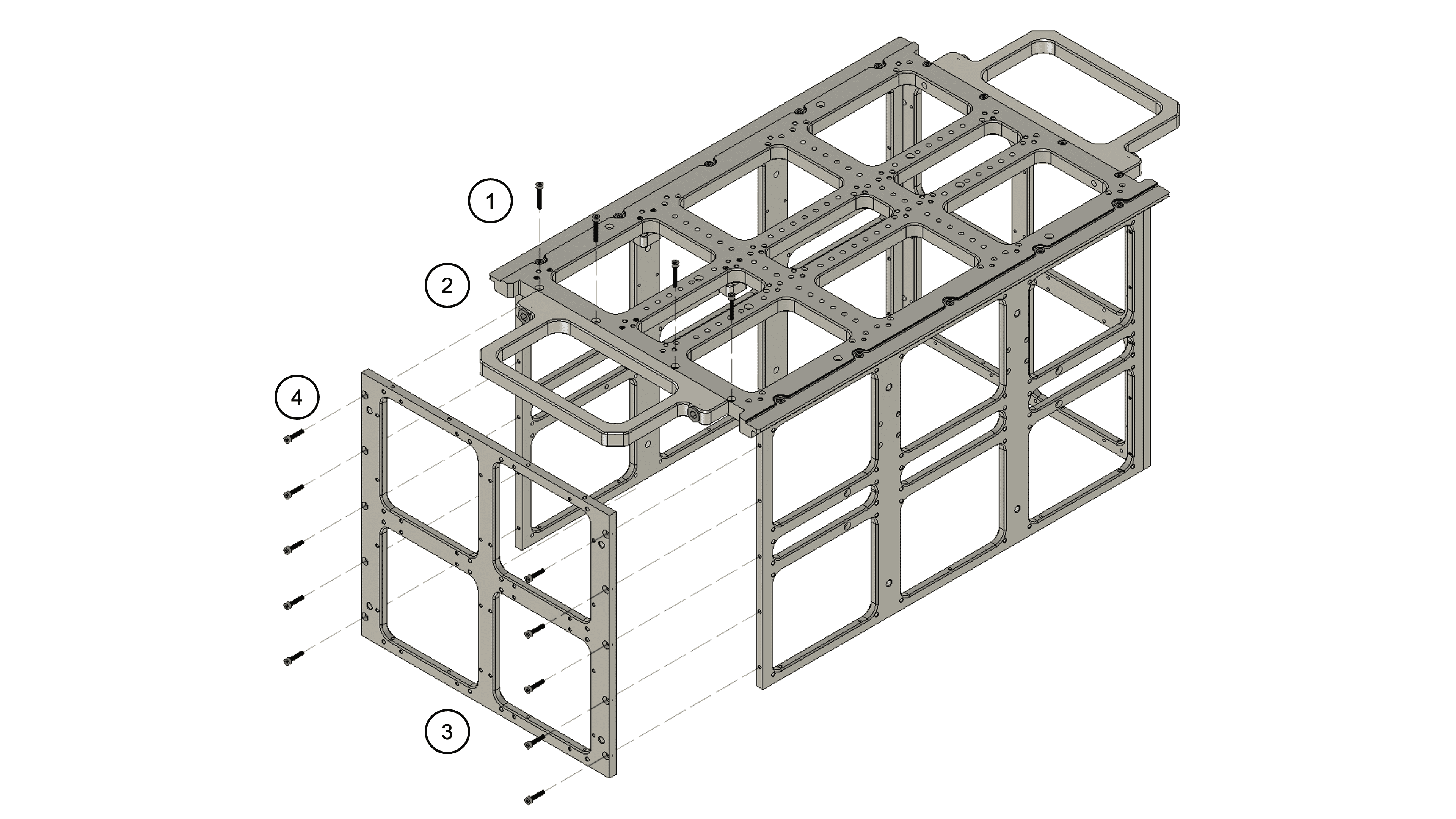

Back Panel Assembly¶
| # | Part number | Qty | Assembly Torque [N.m] |
|---|---|---|---|
| 1 | F-CH-M-2.5-16-A4 | 4 | 0.55 |
| 2 | ASSEMBLY | 1 | - |
| 3 | S-PANEL-BA-10 | 1 | - |
| 4 | F-CH-M-2.5-12-A4 | 10 | 0.55 |
Warning
Do not apply the assembly torque to until the side, front and back panels are attached to the baseplate creating an open box. It is an important step which accounts for the stack-up of tolerances and helps with alignment of parts.
Step description¶
- Attach the back panel (
#3) to the assembly (#2) with the baseplate using the M2.5 x 16 mm fasteners provided (#1). - Attach the back panel (
#3) to the assembly (#2) with the side plates using the M2.5 x 12 mm fasteners provided (#4).
